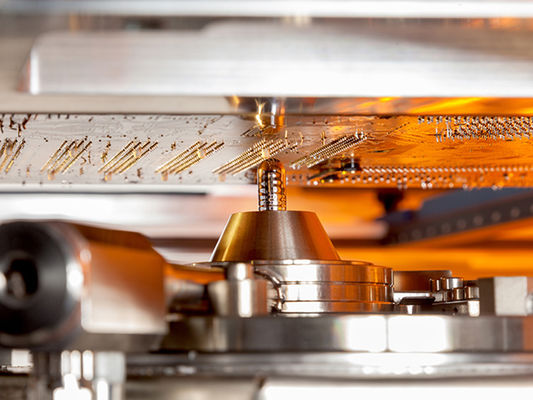

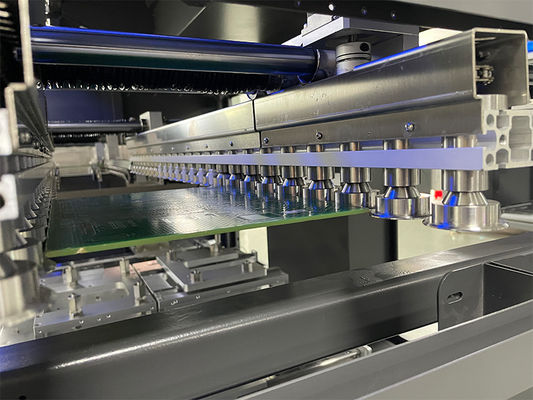

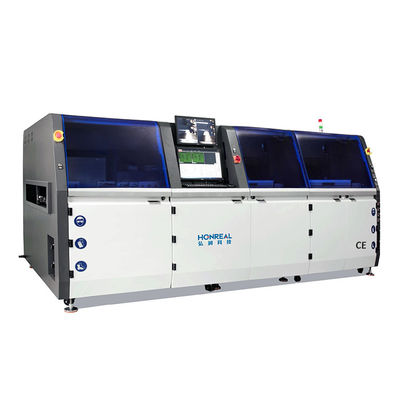

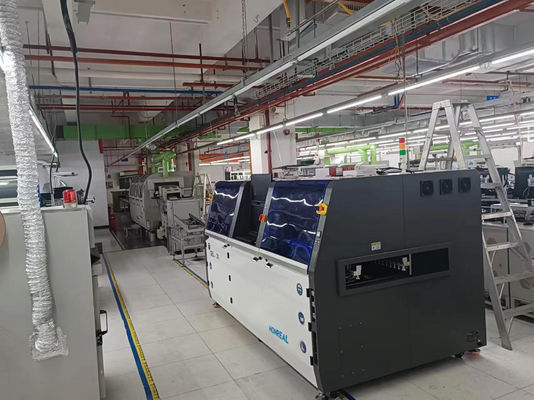

In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder
  • name
  • name
  • name
  • name

In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder

MOQ: 1Set
Preis: Verhandlungsfähig
Standard Packaging: Holzhilfe
Delivery Period: 45 Arbeitstage
Payment Method: L/C, T/T, Western Union
Supply Capacity: 100Sets/Monat
Detailinformationen
Product Description
Detailinformationen
Herkunftsort
CHINA
Markenname
HONREAL
Zertifizierung
CE
Modellnummer
HRX-31D
Dokumentieren
Honreal--Double module sele...p).pdf
Notwendiger N2-Druck:
0,4-0,6mpa
Produktname:
HRX-31D Online Selektive Wellenlötend
Produktkategorie:
SMT-Selektive Wellenlösemaschine
Nettogewicht:
2500 kg
Positionsachse:
X, Y, Z
Dimension:
L4193 x W1645 x H1630mm
Maximale Tragfläche:
L580 x W460mm
Vorwärmmethode:
Top Hot Air Vorheizen; Bottom Shortwave Infrarot Vorheizung
Hervorheben:

selective wave soldering machine HRX-31D

,

two pot selective solder machine

,

SMT wave soldering machine with warranty

Product Description
In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder
High Productivity In-line Selective Soldering Machine HRX-31D

Advanced selective soldering solution with high efficiency and quality performance.

Key Advantages
  • Fully functional online model with spray, preheating and welding three-stage configuration
  • Segmented independent PCB transport guide for improved production efficiency
  • High welding quality with improved pass rate
  • Comprehensive preheating system with lower IR, upper hot air, and upper IR heat compensation
  • Modular SMEMA online transportation design for flexible line formation
  • Full PC control with parameter saving capability for repeatable soldering quality
Technical Specifications
Parameter Value
Equipment type HRX-31D
Machine size L4193 x W1645 x H1630mm
Total machine power 35kw
Machine operating power 9-12kw
Power source Three-phase five-wire system 380V
Net weight 2500KG
Air source pressure requirements 0.4~0.6Mpa
Nitrogen source pressure requirements 0.4~0.6Mpa
Nitrogen source flow requirements ≥4 cubic/hour
Nitrogen source purity requirements ≥99.999%
Communication interface SMEMA
Transport Module Specifications
Feature Specification
Maximum PCB size L508 x W460mm
PCB board edge More than 5mm
Transport direction Horizontal from left to right
Headroom on PCB board 120mm
PCB board bottom clearance 60mm
Transport bearing capacity ≥10Kg
Transport height 900±30mm
Software Features
  • Independent software system with complete intellectual property rights
  • Live solder process display via camera
  • Critical parameter monitoring (temperature, speed, pressure)
  • Offline programming capability
  • Multiple programming methods (Gerber, camera scanning, PCBA scanning)
  • Automatic wave peak height correction
  • Comprehensive PCB menu storage for historical data tracking
  • LOG function with 3-level access rights
Support and Services

Our SMT Selective Wave Soldering Machine requires minimal maintenance but comes with comprehensive support:

  • Remote technical assistance via phone or email
  • On-site support services including installation, training, and maintenance
  • Dedicated technical team for peak performance optimization
HR-400C Online Selective Wave Soldering Machine HR-400C Online Selective Wave Soldering Machine close-up
Company Information

Shenzhen Honreal Technology Co., Ltd. is a national high-tech enterprise specializing in SMT equipment research, development, production, and sales. We serve top global electronic companies with our experienced technical team and innovation capabilities.
